Control Valve Body Types: Industrial vs. Automotive Flow Paths

Intent Disambiguation: Industrial Process vs. Automotive Hydraulics

To ensure you are spending your valuable time in the right technical domain, let’s separate the two entirely different engineering realities of “valve bodies.”

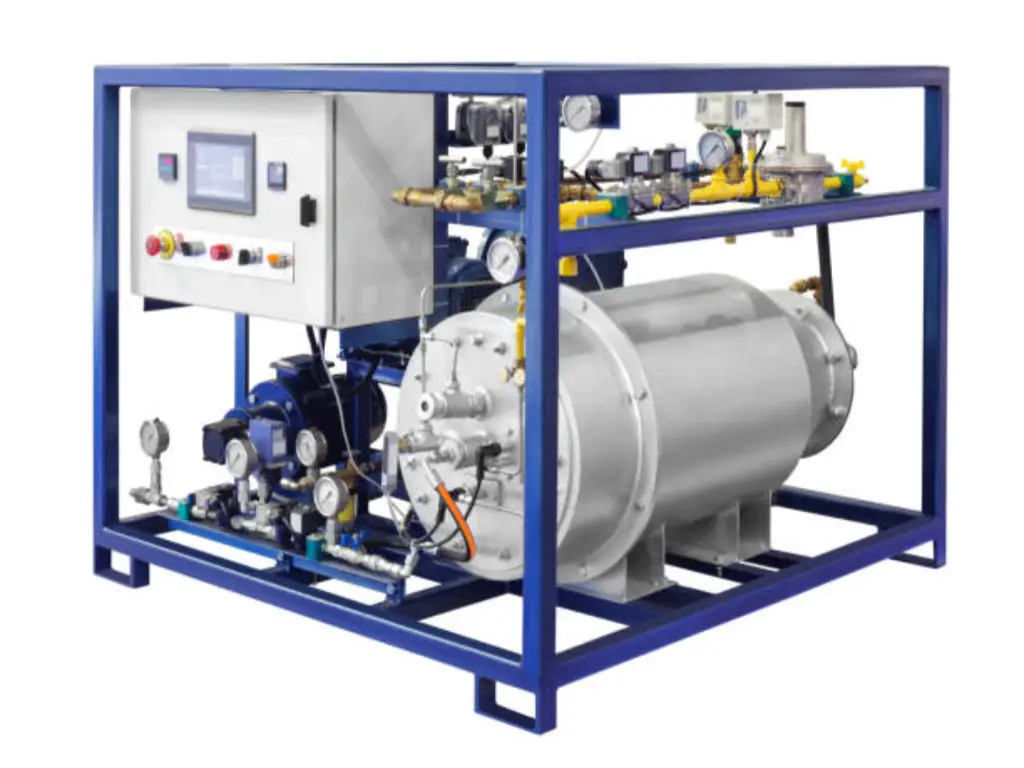

1. Industrial Control Valve Bodies

• Core Function: Acts as the primary pressure boundary for pipelines. Modulates or isolates the flow of liquids, gases, or steam.
• Key Concerns: Extreme temperatures, high pressure drops (”P), corrosive media (chlorides, acids), and cavitation.
• Materials: Carbon steel, Duplex stainless steel, Hastelloy, and specialized alloys.
• Applicable Scenarios: High-pressure chemical pipelines, power plant steam routing, and corrosive fluid processing under ASME/PED standards.

2. Automotive Transmission Valve Bodies

• Core Function: The “hydraulic brain” of an automatic gearbox. It directs transmission fluid through a maze of channels to actuate clutches and bands.
• Key Concerns: Shift flares, harsh engagements, solenoid failures, and fluid contamination.
• Materials: Die-cast aluminum with precision-machined labyrinth passages.
• Applicable Scenarios: Diagnosing shifting delays, rebuilding automatic transmissions, and aftermarket part replacement.

(Note: If you are diagnosing transmission issues, jump straight to our automotive quick-guide at the end of this article.)

Engineering Pre-requisites: Working Conditions & Material Selection Logic

In industrial fluid engineering, selecting the mechanical geometry of a valve is useless if the material cannot survive the environment. The valve body is the primary pressure-containing envelope. Under ASME B16.34 and API 598 standards, a catastrophic shell failure is not just a maintenance issueit is a safety hazard.

Before deciding between a globe or a butterfly valve, engineers must evaluate the Temperature-Pressure (T-P) gradients and the chemical aggressiveness of the media. Here is the hardcore material defense logic to prevent premature failure.

The Manufacturing Bottleneck of High-End Alloys

When moving up the tier list to materials like Duplex or Hastelloy, a hidden danger emerges: these high-value alloys are incredibly susceptible to porosity, sand inclusions, and micro-shrinkage when poured using traditional sand casting or water glass methods. A hidden void inside a Hastelloy valve body will inevitably lead to a blowout under high-pressure testing.

How Top Engineers Mitigate This Risk: To guarantee absolute integrity of the pressure boundary, modern engineers rely on Vacuum Investment Casting. Facilities like BesserCasting utilize vacuum environments to cast over 200 material grades, including difficult-to-pour Nickel alloys and Hastelloy. By integrating German Spectro spectrometers for 100% pre-pour chemical analysis, and achieving astonishing 0.5mm minimum wall thicknesses, the fear of internal porosity is completely eliminated, ensuring every valve body meets stringent ASME and PED pressure standards.

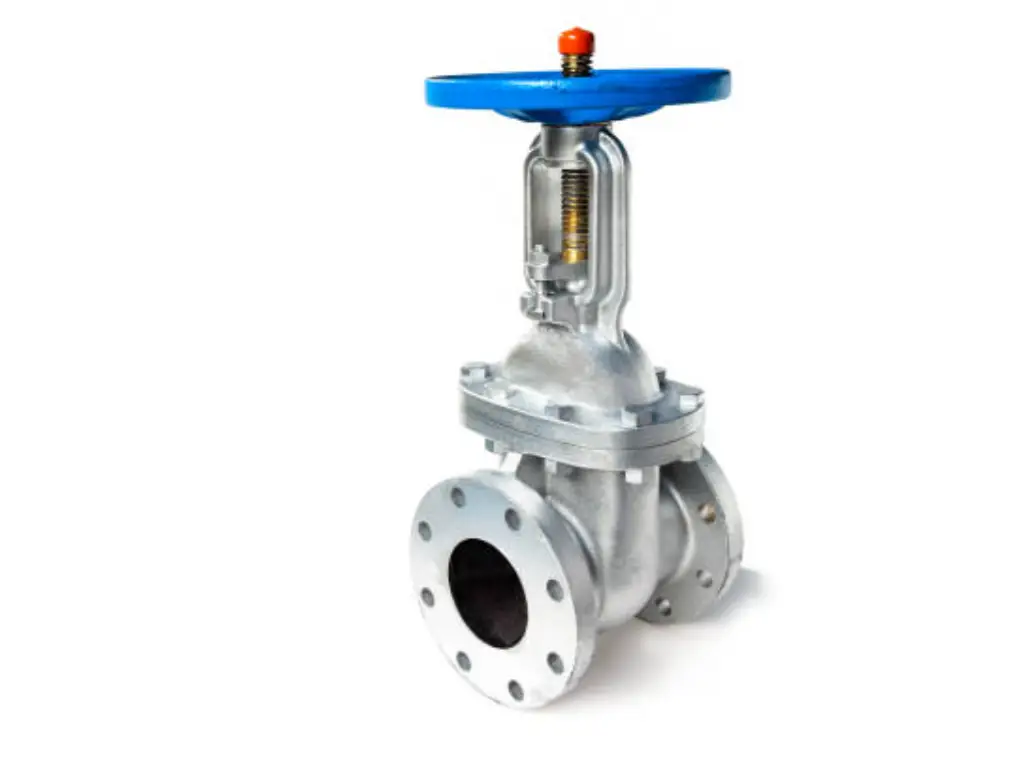

Linear Motion Valve Bodies: Precise Throttling Dynamics

Linear motion valves actuate by moving a stem up and down. This vertical stroke allows for incredibly precise positioning of the plug within the seat, making them the undisputed kings of throttling and fine flow control.

Globe Valves & Anti-Cavitation Trims (The Precision Regulators)

Globe valve bodies force the fluid to make a tortuous, S-shaped path through the chamber. This design creates a natural restriction, making them perfect for regulating flow. However, this restriction comes at a cost: a massive pressure drop (”P).

The Threat of Cavitation: When controlling liquid flow with a high pressure drop, the localized pressure inside the globe body can drop below the fluid’s vapor pressure. The liquid flashes into vapor bubbles. As the fluid recovers pressure exiting the valve, these bubbles violently collapse. This implosion, known as cavitation, acts like microscopic depth charges, blasting away stainless steel walls and destroying the valve within weeks.

The Engineering Solution: Simply upgrading to a harder valve body material (like Stellite hardfacing) only delays the inevitable death of the valve. The true cure is addressing the physics. Advanced globe valves utilize a Multi-stage Anti-cavitation Trim (often a cage-guided design). By forcing the fluid through a series of labyrinthine holes, the single fatal pressure drop is broken down into multiple, safe, stair-stepped pressure reductionseliminating bubble formation at its physical source.

Diaphragm Valve Bodies (Ultra-Purity Control)

In biopharmaceutical or semiconductor industries, cleanliness is paramount. A diaphragm valve body uses a flexible elastomer to pinch off the flow. Because the fluid never touches the internal moving mechanics, there are zero “dead legs” (areas where stagnant fluid can breed bacteria). These bodies are critical for CIP (Clean-In-Place) and SIP (Sterilize-In-Place) compliance.

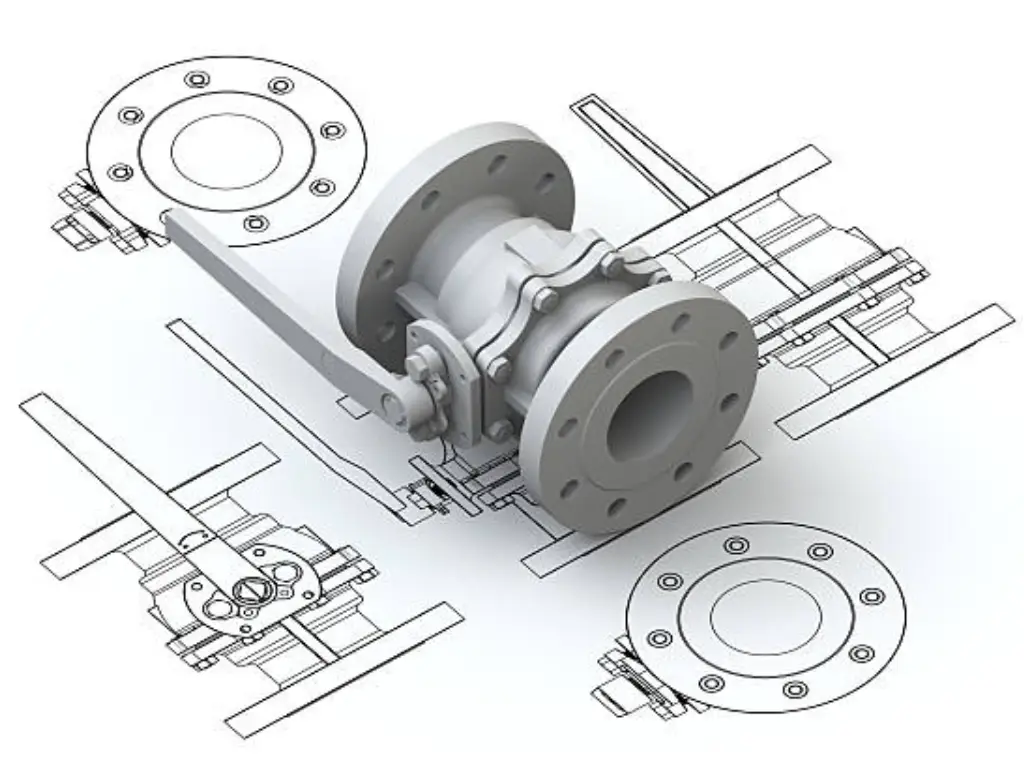

Rotary Motion Valve Bodies: High-Capacity and Fast-Response Designs

Rotary valves rely on a quarter-turn (90 degrees) of the stem to move the closure element. They are generally more compact, weigh less, and offer massively higher flow capacities (Cv) than their linear counterparts.

High-Performance Butterfly Valves & The Triple Offset Geometry

Standard rubber-lined butterfly valves are great for low-pressure water, but they cannot handle severe industrial conditions. Enter the High-Performance Butterfly Valve.

To achieve a bubble-tight shut-off in extreme temperatures without wearing out the seal, engineers developed the Triple Offset Geometry. Instead of functioning like a simple swinging door, the sealing surface is machined into an asymmetrical, conical profile. This mathematically brilliant design ensures that the metal disc only comes into contact with the metal seat in the final 1 degree of closure. By achieving completely frictionless stroking throughout 99% of its travel, galling is eliminated, and the valve’s lifespan is drastically multiplied.

V-Notch Ball Valves (Shear & Control)

While standard full-port ball valves are terrible for flow regulation, the V-Notch Ball Valve is a masterpiece of control. The ball features a V-shaped contour that provides an equal-percentage flow characteristic.

More importantly, as the V-notch rotates against the seat ring, it creates a powerful shearing action. This makes it the ultimate valve body choice for the pulp and paper industry, wastewater treatment, or any application involving fibrous slurries that would jam a traditional globe valve.

How to Choose the Right Control Valve Body: A 4-Step Engineering Framework

Understanding the physics behind each valve type is only the beginning. When staring at a complex P&ID (Piping and Instrumentation Diagram), selecting the exact valve body configuration requires a systematic approach. To avoid costly sizing errors, follow this chronological 4-step framework.

Step 1: Define the Primary Objective (Control vs. Isolation)

Never attempt to force a valve to do a job it wasn’t geometrically designed for. For precise throttling, limit choices to Globe or V-Notch Ball valves. For strict on/off isolation, specify high-performance Butterfly valves.

Step 2: Analyze the Fluid Dynamics and Pressure Drop (”P)

If your fluid experiences a massive pressure drop (high cavitation risk), you must select a Globe valve body equipped with a multi-stage anti-cavitation trim. If handling dirty, fibrous pulp media, shift to a Rotary V-Notch body to utilize its shearing action.

Step 3: Map the Physical Flow Topology (2-Way vs. 3-Way)

Look at your piping layout. The vast majority of control valves are 2-way (one inlet, one outlet) for inline throttling. However, if managing multiple streams, you need a 3-way body. You must strictly verify if the process requires:

• Mixing: Takes two separate inlet flows (e.g., hot and cold) and blends them into a single outlet. The internal plug sits against the flow.
• Diverting: Takes one main inlet flow and splits it into two separate outlets (e.g., bypassing a heat exchanger).

Fatal Error: Using a mixing valve in a diverting application will cause severe fluid dynamic instability and premature wear.

Step 4: Lock in the Material and Pressure Class

Finally, cross-reference the maximum operating temperature and chemical aggressiveness of the media with the T-P matrix provided earlier. Ensure the selected material is cast by a foundry that can guarantee the required wall thickness under ASME standards.

From Raw Casting to Precision Machining: Eliminating Supply Chain Friction

Designing the perfect flow geometry on CAD software is only half the battle. The harshest reality in B2B valve procurement is manufacturing supply chain friction. Over 80% of precision control valve bodies require stringent post-casting CNC machining to create tight-tolerance seating areas, stem bores, and flange faces.

When a buyer sources raw castings from one foundry and ships them to a separate machine shop, disaster often follows. When a high-value Hastelloy blank is scrapped during the final CNC threading due to an internal void, the loss isn’t just thousands of dollars in wasted materialit’s 8 weeks of lead-time penalties and exorbitant idle spindle costs.

To eliminate this friction, top-tier global brands require a closed-loop manufacturing partner. By utilizing premium imported zircon sand and advanced silica sol investment casting, facilities can achieve surface roughness levels of Ra 3.2 to 6.3 directly out of the mold. When this is combined with in-house vertical 4-axis CNC machining centers, dimensional tolerances can be controlled down to an exacting 0.01mm.

For engineers developing sub-4-inch exotic alloy bodies requiring intricate labyrinth passages, or complex V-notch components, predicting manufacturing flaws before pouring metal is critical. Investment casting has distinct physical limits, but within the sub-100kg range, it offers unmatched precision. If you are looking to streamline procurement and eliminate multi-vendor friction, you can consult BesserCasting’s engineering team for customized investment casting and turnkey machining solutions tailored to your specific fluid control applications.

Appendix: Automotive Transmission Valve Body Quick Guide

Note: This section is for automotive technicians and aftermarket reference. If you are an industrial piping engineer, your journey concludes above.

In the automotive realm, the valve body acts as the control center for an automatic transmission. It utilizes a complex network of passages and valves to direct pressurized transmission fluid (ATF) to the appropriate clutch packs and band servos, enabling smooth gear shifts.

Hydraulic vs. Mechatronic Valve Bodies

• Purely Hydraulic: Older systems relied entirely on fluid pressure, governed by a governor and throttle valve, to determine shift points.
• Mechatronic (TCU Integrated): Modern vehicles utilize mechatronic units. These submerge the Transmission Control Unit (the electronic brain/CPU) directly into the ATF alongside the hydraulic valves. Shifts are controlled by electronic solenoids utilizing PWM (Pulse Width Modulation) signals for infinite precision.

Common Symptoms of a Failing Transmission Valve Body

• Flare on Upshift: Engine RPMs spike unnaturally before the next gear engages, indicating a delay in hydraulic pressure application.
• Harsh Engagement: A violent clunk or jolt when shifting from Park to Drive, or between gears, often caused by a sticking plunger.
