The Ultimate Guide to Investment Casting Products: Material Selection, DFM, and ROI
What Are Investment Casting Products: Beyond the Sand Casting Limits
When evaluating manufacturing processes for complex metal components, a common pitfall is treating all “casting” methods as interchangeable. The reality is far more nuanced. Many engineers initially default to sand casting due to its low tooling costs, only to discover that the resulting parts require extensive secondary machining to meet acceptable standards.

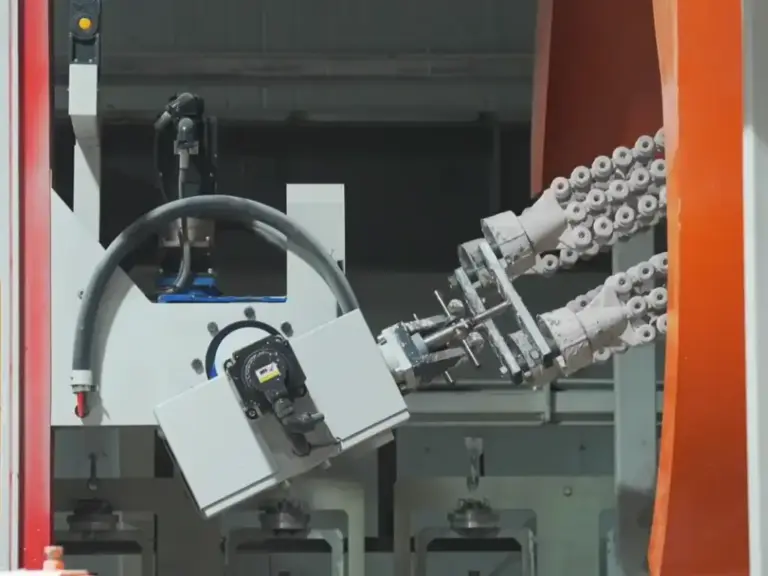

To understand what investment casting (also known as lost-wax casting) truly brings to the table, imagine the difference between sculpting with fine wax versus packing wet sand on a beach. In investment casting, a ceramic shell is built around a highly precise wax pattern. When the wax is melted away, it leaves a cavity so detailed that it can replicate a fingerprint. Sand casting, by contrast, relies on packing sand around a master pattern, which inevitably transfers a grainy, coarse texture to the final metal surface.
| Dimension | Investment Casting | Sand Casting |
|---|---|---|
| Surface Roughness | Typically Ra 3.2 to 6.3 ĩm | Typically Ra 12.5 to 25 ĩm |
| Dimensional Tolerance | ą0.005 inch per inch (Net-shape) | ą0.030 inch per inch (Requires machining) |
| Tooling Cost | Moderate to High (Aluminum dies) | Low (Wood or plastic patterns) |
| Secondary Machining | Minimal to none | Extensive machining required |
The stark contrast in surface roughnessinvestment casting reliably achieving Ra 3.2 ĩm while sand casting often struggles to surpass Ra 12.5 ĩmdictates why industries demanding high-precision, net-shape components almost exclusively choose the investment casting route. It shifts the financial burden from post-casting CNC machining directly to the upfront tooling, ultimately lowering the total cost of ownership for complex parts.
Source: ASM International, 2021
Stainless Steel Investment Casting Products: The Complete Selection Matrix
Searching for the right “stainless steel product” often means you are trying to confirm if this casting process can handle your specific environmental or mechanical demands. The answer is yes, but the success of your component depends entirely on selecting the right alloy family.
Before diving into specific grades, it is crucial to establish a selection framework based on your operating environment. If your component faces severe corrosive elements (like seawater) but only needs moderate strength, the 300 series is your starting point. If you need extreme hardness and wear resistance (like an industrial blade) and corrosion is a secondary concern, the 400 series is appropriate. However, if your application demands both high tensile strength and excellent corrosion resistancesuch as aerospace load-bearing bracketsyou must look toward Precipitation Hardening (PH) steels.
The Selection Anchor: Always map your primary failure risk first. Is it chemical corrosion, physical wear, or sheer structural load? Let the failure risk dictate the alloy series.
300 Series Stainless Steel Castings: The Baseline for Industrial Applications
The 300 series is the undisputed workhorse of the investment casting industry, heavily favored for commercial, food-grade, and marine applications.
Within this family, 304 stainless steel is the standard for general-purpose applications, often found in food processing equipment and commercial fluid handling. However, when the environment shifts to high-chloride conditionssuch as offshore platforms or chemical processing plantsthe industry standard shifts to 316 stainless steel. The addition of Molybdenum (Mo) in 316 provides crucial resistance against pitting and crevice corrosion.
For applications involving heavy welding, it is essential to specify the “L” variants (like 316L). The “L” stands for low carbon, which prevents chromium carbide precipitation at grain boundaries during welding, effectively eliminating the risk of intergranular corrosion. Think of the difference between a standard kitchen sink (304) and a heavy-duty desalination pump impeller (316L); the presence of Molybdenum is the invisible shield that dictates the product’s lifespan.
17-4PH Precipitation Hardening Steel Castings: Unlocking Extreme Yield Strength
When standard 300 series stainless steels lack the mechanical backbone for your design, 17-4PH (17% Chromium, 4% Nickel) steps in. This alloy is engineered specifically for elite aerospace, defense, and surgical medical device applications where the demand for “high strength plus high corrosion resistance” is non-negotiable.
The secret to 17-4PH lies in its unique heat-treatment mechanism: precipitation hardening. When the metal is first cast, it retains enough ductility to be moderately machined. However, once subjected to a specific aging temperature (often referred to as baking or aging), the copper within the alloy matrix precipitates out, locking the crystalline structure into place. This is conceptually similar to curing carbon fiberit starts pliable but solidifies into an incredibly rigid structure.
Under the specific H900 heat treatment condition, the ultimate tensile strength of a 17-4PH casting can skyrocket to over 1310 MPa. This allows engineers to design thinner, lighter load-bearing brackets without sacrificing structural integrity.
Source: ASTM International, 2018
400 Series Stainless Steel Castings: Maximizing Hardness and Wear Resistance
Completing the stainless steel spectrum is the 400 series, specifically grades like 410 and 420. Unlike their 300 series counterparts, these alloys contain little to no nickel, rendering them highly magnetic and fundamentally changing their microstructure to martensitic.
This martensitic structure means that the 400 series can be quenched and tempered to achieve extreme hardness levels. These alloys are specifically cast for applications where severe metal-on-metal wear or cutting action is expected, such as industrial cutting blades, high-pressure fluid pump housings, and specialized hand tools. If you have ever wondered why a high-end chef’s knife can be picked up by a magnetic strip yet retain a razor-sharp edge capable of cutting through dense bone, you are witnessing the physical traits of martensitic stainless steel in action.
Nickel Alloy Investment Casting Products: Breaking the 1000°F Barrier
There is a hard physical limit to standard steel alloys: when the operating environment exceeds 1000°F (538°C), conventional stainless steels begin to suffer from severe creep (slow, permanent deformation under stress) and a catastrophic drop in yield strength. At this thermal boundary, your engineering budget must transition into the realm of Superalloys, primarily Nickel-based materials.
Inconel 718 Investment Castings: Maintaining Strength Above 1300°F
Inconel 718 is the benchmark material for extreme temperature applications, serving as the backbone for gas turbine engine blades, deep-sea drilling components, and liquid-fueled rocket engines.
The primary advantage of Inconel 718 is its ability to maintain massive yield strength even when operating continuously at temperatures up to 1300°F (700°C). Picture the exhaust nozzle of a jet engine: standard metals would soften like warm butter in that inferno, but Inconel 718 maintains its rigid structural integrity.
However, this same high-temperature strength makes Inconel 718 notoriously difficult to shape via traditional CNC machining, as it work-hardens rapidly under the cutting tool. This is precisely why investment casting is not just a preferred method for Inconel 718it is often the only economically viable way to produce complex geometries without burning through expensive machining tooling.
Source: Special Metals Corporation, 2023
Inconel 625 Investment Castings: The Ultimate Shield Against Corrosion
While 718 dominates the high-temperature structural space, Inconel 625 is the undisputed champion of extreme corrosion resistance.
Inconel 625 achieves its performance through a solid-solution stiffening effect of molybdenum and niobium on the nickel-chromium matrix. The practical result is near-total immunity to chloride-ion stress corrosion cracking. Whether the component is submerged in boiling seawater, exposed to aggressive sour gas in downhole oil applications, or bathed in acidic chemical processing fluids, Inconel 625 acts like an impenetrable gas mask for the metal world, forming a passivation layer that harsh chemicals simply cannot breach.
Carbon and Tool Steel Castings: Rugged Durability Meets Cost-Efficiency
Not every component needs to survive a jet engine exhaust or a saltwater bath. For a vast segment of the industrial, agricultural, and heavy machinery markets, the primary requirements are raw structural durability and cost-efficiency. This is the domain of carbon and tool steel castings.
Think of these alloys as the structural chassis of a heavy-duty truck: they aren’t designed to look flashy, and they will require surface treatments (like plating or painting) to prevent rust, but they deliver unbeatable mechanical reliability per dollar spent.
| Material Type | Core Characteristic | Typical Application |
|---|---|---|
| Low Carbon Steel (e.g., WCB) | Excellent weldability and toughness; industry standard for fluid control. | Heavy-duty industrial valve bodies and pipe fittings. |
| High Carbon Steel | Increased hardness and tensile strength; lower ductility. | High-wear agricultural machinery parts and brackets. |
| Tool Steel (e.g., D2) | Extreme abrasion resistance and hardness; poor casting fluidity. | Stamping dies; industrial crushers and forming tools. |
For instance, WCB (Cast Carbon Steel) is arguably the most common material globally for industrial valve bodies due to its excellent pressure-containing capabilities and ease of welding. On the other end of the spectrum, tool steels like D2 offer extreme wear resistance for crushing and cutting applications, though their poor molten fluidity requires highly skilled foundry engineers to cast successfully without defects.
Common Industrial Applications for Investment Castings: Sectors That Demand Net-Shape Precision
When an industry demands a combination of complex internal cavities, strict weight reduction, and superior surface finish, investment casting becomes the default manufacturing solution. It bridges the gap between the impossible and the economically viable.
- Aerospace & Defense: The constant push for weight reduction and thermal efficiency means utilizing complex geometries that cannot be machined. Investment casting is heavily relied upon for producing turbine blades with intricate internal cooling channels.
- Medical Devices: Biocompatibility and net-shape precision are paramount. Implant-grade Titanium and Cobalt-Chrome are routinely investment cast to create artificial knee joints and orthopedic implants that require zero surface porosity to prevent bacterial trapping.
- Automotive & Racing: Performance vehicles require parts that can handle high stress and extreme heat without adding bulk. Turbocharger impellers and racing exhaust manifolds are classic examples of components perfectly suited to the process.
- Oil & Gas: Deep-sea drilling and fluid control systems operate under immense pressure and highly corrosive conditions. Investment casting ensures that complex valve bodies and pump impellers are cast without internal voids, maintaining pressure integrity.
DFM Guidelines for Complex Investment Castings: Stop Designing for Scrap
The vast majority of clients facing high scrap rates, delayed deliveries, and blown budgets in investment casting are not failing because they chose the wrong material. They fail because they skipped Design for Manufacturability (DFM). A simple, poorly designed fillet or a sudden transition in wall thickness can easily double your unit cost.
Managing Dimensional Tolerances and Wax Shrinkage: Preventing Bowing Distortion
A common pain point for engineers transitioning to investment casting is discovering that their long 17-4PH shafts are out of tolerance due to warpage. This happens because the process involves a double-shrinkage event: first, the wax pattern shrinks as it cools in the die, and second, the molten metal shrinks as it solidifies in the ceramic shell.
For steel alloys, this linear shrinkage typically ranges between 1.5% and 2.0%. If your design features non-uniform coolingsuch as thick-to-thin transitionsthe part will inevitably experience bowing distortion. Think of baking a complexly shaped cookie: as it cools after leaving the oven, the thinner edges harden first while the thicker center continues to contract, pulling the edges inward and warping the shape. The solution requires sophisticated DFM: utilizing reverse compensation calculations in the tooling phase or deploying soluble wax cores to stabilize the geometry during cooling.
Preventing Porosity in High-Temperature Alloys: Eliminating Bifilm Defects
For extreme materials like Inconel 718, porosity is the absolute enemy of yield strength. Many engineers struggle with high scrap rates caused by invisible internal voids. The root cause is almost always turbulent pouring.
According to John Campbell’s widely recognized defect formation theory, turbulent flow during the casting process folds the surface oxide layer into the molten metal, creating double-layer oxide films (bifilm defects) that act as initiation sites for porosity and cracking. It is identical to pouring a beer: pouring rapidly from a height creates massive turbulence and traps air bubbles. High-level casting requires a smooth, non-turbulent filloften utilizing Vacuum Induction Melting (VIM) and Hot Isostatic Pressing (HIP) to literally squeeze out any microscopic voids under extreme heat and pressure.
Source: Springer, 2011
The Bessercast Advantage: High scrap rates eat directly into your profit margins. Navigating the complex shrinkage rates of 17-4PH or preventing porosity in Inconel requires a rigorous quality control framework. Supported by our IATF16494 and ISO 9001 certified systems, Bessercast routinely holds dimensional tolerances to a strict ą0.005 inch, providing the DFM foresight needed to design for yield, not for scrap.
Cost Analysis: Is Investment Casting Worth It for Low Volumes?
A frequent dilemma on engineering forums is the ROI of investment casting for low-volume production (e.g., 500 units per year). Is it really worth paying a higher upfront tooling fee compared to the cheap wooden patterns of sand casting?
The mathematical tipping point is surprisingly low. If your component features three or more complex curved surfaces or intricate internal channels, the cost of the secondary CNC machining required to “fix” a rough sand casting will rapidly eclipse the initial tooling amortization of investment castingoften at a volume as low as 200 pieces.
Consider a practical scenario for 500 parts: You could purchase 500 cheap sand cast blanks, but you will spend $50 per part on CNC milling to achieve the required surface finish. Alternatively, investing $3,000 in an aluminum investment casting die yields a net-shape part, dropping your per-piece machining cost to just $5.
| Manufacturing Process | Tooling Cost | Part & CNC Cost (Per Unit) | Total Cost (500 Units) |
|---|---|---|---|
| Sand Casting + Extensive CNC | $500 | $60 ($10 Blank + $50 CNC) | $30,500 |
| Investment Casting + Minimal CNC | $3,000 | $25 ($20 Net-shape + $5 CNC) | $15,500 |
By shifting the financial burden from repeated labor (machining) to a one-time capital asset (tooling), investment casting slashes the total cost of ownership nearly in half for this scenario.
How to Choose an Investment Casting Manufacturer: Escaping the Supply Chain Trap
Understanding the metallurgical and financial benefits of investment casting is only half the battle; executing the project requires finding a capable foundry partner. To avoid the common traps of delayed lead times and shifting blame, use this three-step validation checklist:
Verify the Certification Barrier
Do not settle for a generic ISO certificate if your industry demands more. Automotive parts require the rigor of IATF16494, while aerospace components strictly necessitate AS9100.
Scrutinize the Lead Time to FAI
The industry standard for tool development and First Article Inspection (FAI) samples hovers around 4 to 6 weeks. A manufacturer that can compress this timeline represents a massive supply chain advantage.
Demand an In-House Secondary Machining Loop
This is the most critical safeguard. Hiring a pure foundry that only pours metal is like hiring a restaurant without a kitchen. If they outsource the post-casting CNC work, any dimensional failures will result in the foundry and the machine shop blaming each other. You need a closed-loop provider.
Accelerate Your Go-to-Market
Disconnected supply chains lead to endless finger-pointing and elongated lead times. At Bessercast, we eliminate the friction by keeping our entire secondary CNC machining in-house. This closed-loop system enables us to offer an industry-leading turnaround: 10 days for tooling and 10 days for FAI samples. Stop waiting 6 weeks for a prototype.
