The Ultimate Guide to Carbon Steel Investment Casting: Costs, Grades & Tolerances

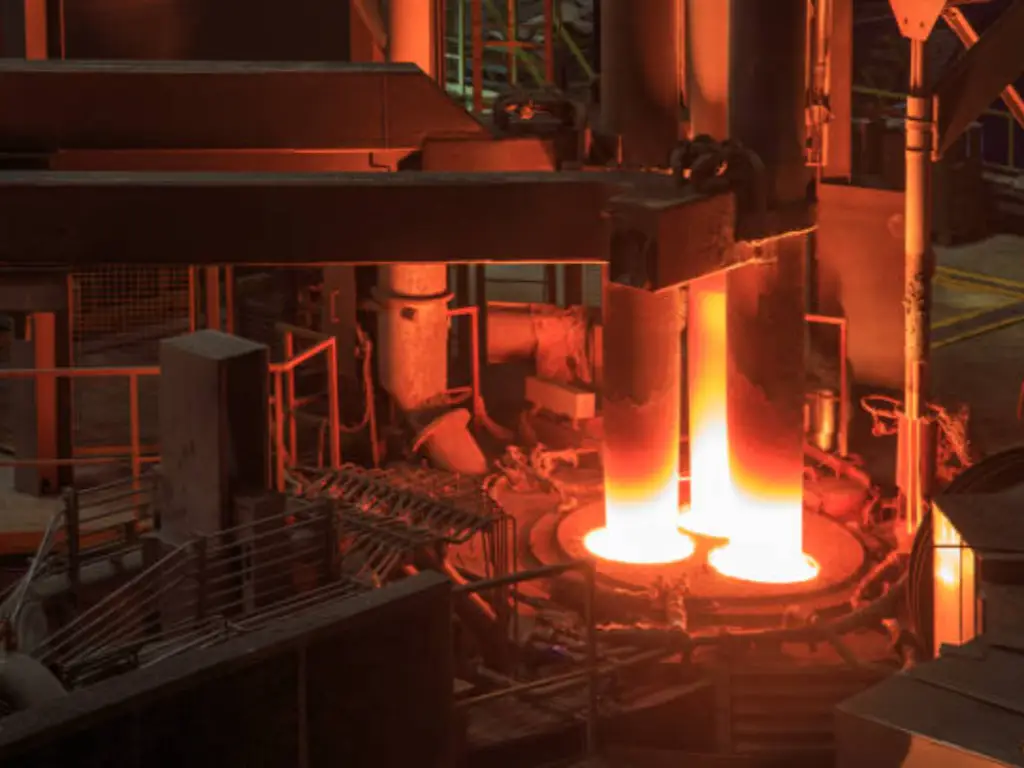

To truly grasp the strategic value of carbon steel investment casting, we must first strip the concept down to its first principles. At its core, carbon steel is an alloy composed primarily of iron and carbon. This fundamental metallurgical pairing dictates its extraordinary yield strength, impact resistance, and overwhelming cost-effectiveness. However, the true engineering magic occurs when this robust material is married to the investment casting (lost-wax) process. The fundamental problem in modern manufacturing is material waste and machining time. Traditional sand casting, while inexpensive for massive, rudimentary shapes, yields poor surface finishes (often exceeding Ra 12.5) and broad dimensional tolerances that demand extensive downstream CNC machining. Conversely, machining a complex component purely from a solid carbon steel billet is a painfully inefficient utilization of both raw material and high-value 5-axis CNC machine hours.

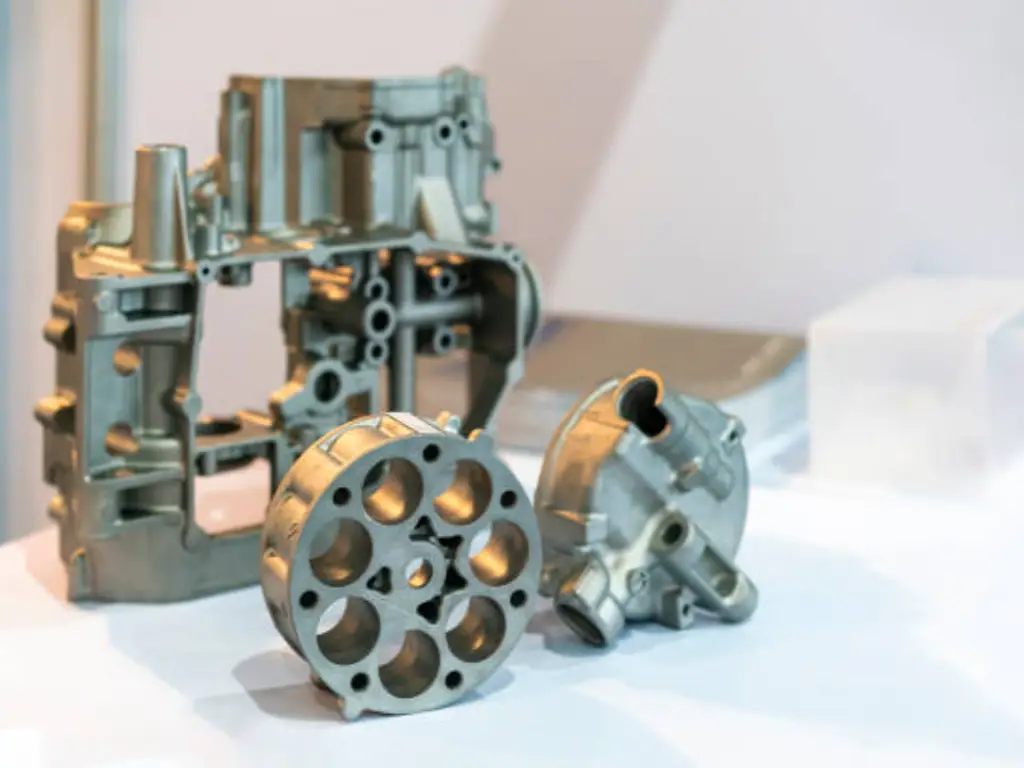

This is where the principle of “Near-Net-Shape” (NNS) manufacturing transforms the economic equation. Investment casting utilizes an expendable wax pattern coated in a highly refractory ceramic shell. When the wax is melted away and the molten carbon steel is poured into the perfectly smooth ceramic cavity, the resulting metal component faithfully replicates the master die with microscopic precision. Consider a practical engineering scenario: manufacturing a complex hydraulic gear pump housing. If you were to machine this component from a 10kg solid block of carbon steel, the aggressive milling, boring, and tapping operations could generate up to 6kg of scrap steel chipsrepresenting a 60% material waste, not to mention the exorbitant tooling wear and spindle time. By shifting to carbon steel investment casting, the raw casting emerges from the ceramic shell weighing exactly 4.2kg, perfectly matching the intricate internal fluid galleries and external mounting flanges, requiring only a minimal 0.2kg removal for final bearing face precision. You are no longer paying to remove metal; you are only paying for the metal you actually deploy into the field.

Selecting the correct material grade is arguably the most critical decision in the engineering lifecycle of a casting. Specifying an arbitrary “carbon steel” on a CAD drawing is a recipe for catastrophic failure, varying shrinkage rates, and unmachinable parts. The performance of carbon steel is exponentially sensitive to its carbon content and the strategic introduction of alloying elements. Below is a rigorous breakdown of the three primary metallurgical categories utilized in high-performance investment casting, empowering you to match the precise alloy to your environmental and mechanical loads.

Medium Carbon & Low-Alloy Steels (AISI 1045, 4140)

As we escalate the carbon content into the 0.30% to 0.60% range, the material transitions from ductile to highly resilient. While AISI 1045 represents a classic medium carbon steel, providing a significant boost in tensile strength over 1020, standard carbon steels begin to exhibit a severe limitation in thick-walled castings: insufficient hardenability. If you attempt to heat-treat a massive, thick solid carbon steel casting, the exterior cools rapidly to form hard martensite, but the insulating core cools too slowly, remaining soft pearlite.

This is precisely why in the precision casting industry, we invariably group medium carbon steels with low-alloy engineering powerhouses like AISI 4140. By introducing highly controlled amounts of Chromium (Cr) and Molybdenum (Mo), AISI 4140 drastically shifts the continuous cooling transformation (CCT) curve. This elemental manipulation allows the casting to achieve uniform, deep hardening throughout thick cross-sections during the quench cycle. Capable of reaching hardness levels exceeding HRC 50 after targeted heat treatment, 4140 sacrifices some weldability to unlock ultimate wear resistance and fatigue strength. Imagine the track link of an earthmoving bulldozer or a heavy-duty transmission gear operating under brutal, repetitive impact loads and abrasive frictionthese are the environments where the deep hardenability of 4140 low-alloy steel ensures the component does not shear or gall under extreme kinetic stress.

One of the most persistent dilemmas faced by procurement teams and design engineers is the choice between carbon steel and stainless steel (such as 304 or 316). The anxiety is rooted in the fear of corrosion: should the project absorb a massive upfront material cost to utilize inherently rust-proof stainless steel, or should it leverage the aggressive cost-efficiency of carbon steel coupled with a secondary surface treatment? To resolve this, we must look at the raw commodity markets. The London Metal Exchange (LME) dictates the global pricing of base metals. Stainless steels corrosion resistance is entirely dependent on its high Chromium (minimum 10.5%) and Nickel (often 8-10% in 304 series) content. With Nickel frequently trading at premium volatility (often exceeding $16,000 to $20,000+ per metric ton), the alloy surcharges applied to stainless steel billets make them exponentially more expensive than plain carbon steel.

The commercial takeaway is brutally clear: volume for volume, a 304 stainless steel casting will cost your supply chain 3 to 5 times more in pure material costs than its carbon steel equivalent. Unless your component is permanently submerged in a highly acidic fluid, exposed to marine salt water, or strictly regulated by food-grade FDA requirements, defaulting to stainless steel is a gross misallocation of capital. By specifying a high-strength carbon steel and pairing it with a robust surface coating (such as hot-dip galvanizing or zinc-nickel plating), you can instantly slash your Bill of Materials (BOM) cost by over 40% while achieving superior mechanical strength and adequate environmental protection.

Understanding the economics of investment casting requires looking past the basic steps of wax injection and dewaxing, and focusing on the thermomechanical advantages of the ceramic shell. After the wax tree is repeatedly dipped in ceramic slurry and stuccoed with refractory sand, it undergoes a critical Shell Baking process at temperatures exceeding 1000∞C. This vitrifies the ceramic, giving it immense high-temperature strength to withstand the kinetic shock of 1600∞C molten steel, while completely eradicating any residual moisture that could cause gas porosity.

From an engineering design perspective, the most lucrative advantage of this ceramic shell is the concept of Minimal Draft Allowances. In traditional sand casting or drop forging, engineers must design parts with severe 3 to 5-degree draft angles simply so the pattern can be yanked out of the sand without collapsing the mold. This added angled material must later be CNC milled away to create flat, parallel mating surfaces. Because investment casting uses a sacrificial wax pattern that is melted out (rather than pulled out), the ceramic mold requires absolutely zero draft. It must be noted, for absolute technical accuracy, that the aluminum Wax Pattern Die (the tooling used to inject the wax) still requires a microscopic draft of 0.5∞ to 1∞ on specific deep internal features to eject the wax smoothly. However, this is negligible compared to other methods. This ability to cast deep, parallel undercuts and complex internal galleries without draft angles is the exact mechanism that eliminates the need for expensive 5-axis CNC machining, flipping the Return on Investment (ROI) heavily in favor of investment casting.

The Delivery Bottleneck & The Automation Solution: While the ceramic shell unlocks incredible geometry, the traditional manual shell-building process is the Achilles’ heel of the casting industry. Hand-dipping heavy wax trees leads to uneven shell thickness, inconsistent cooling rates, and ultimately, dimensional distortion. Furthermore, a manual shell requires up to 7 days of slow drying. This is why top-tier OEMs in the agricultural and railway sectors rigorously audit foundries for automation capabilities. At Besser Casting, we have eradicated this bottleneck by deploying two state-of-the-art Automated Shell Making Production Lines. By replacing human inconsistency with robotic precision, we not only ensure absolute uniformity in wall thickness and pristine surface finishes (down to Ra 3.2) across every batch, but we also compress the 7-day shell cycle down to an astonishing 35 hours. This capital-intensive automation is the backbone of our 250-ton monthly capacity, permanently eliminating the extended lead times that plague standard foundries.

When a carbon steel casting breaks out of its ceramic shell, its journey is only half complete. The rapid, uneven cooling of molten metal within the mold creates a chaotic internal microstructure fraught with massive residual stresses. The grains are coarse, and the mechanical properties are highly inconsistent. Deploying an “as-cast” carbon steel component into a dynamic, load-bearing environment is a critical engineering error. We must unlock the metal’s true potential through highly controlled thermal manipulationheat treatment.

The baseline protocol for any structural carbon steel casting is Normalizing. The casting is loaded into an atmospheric furnace and heated to roughly 900∞C (above its upper critical temperature) until the entire matrix transforms into austenite. It is then removed and allowed to cool uniformly in still ambient air. This physical process completely recrystalizes the steel, wiping away all casting stresses and refining the coarse dendritic grains into a tight, uniform pearlitic-ferritic structure. Normalizing prevents the casting from shattering like glass under sudden impact.

For applications demanding extreme performancesuch as the AISI 4140 gears discussed earlierwe advance to Quenching and Tempering (Q&T). The casting is heated to austenitization and then violently plunged into a controlled oil or water bath. This extreme cooling traps the carbon atoms in a distorted lattice known as martensite, creating a material of immense hardness but dangerous brittleness. To restore toughness, the part is immediately Tempered (reheated to a moderate temperature, e.g., 400∞C-600∞C), allowing some of the internal stress to relieve and transforming the brittle martensite into highly resilient tempered martensite or sorbite. This precise thermal choreography allows engineers to dial in the exact balance of tensile strength and impact toughness required for the part’s specific failure modes.

The inherent Achilles’ heel of any carbon steel component is oxidation. In the presence of oxygen and an electrolyte (water), the iron matrix will rapidly degrade into iron oxide (rust). Because carbon steel lacks the chromium required to form a self-healing passive layer, we must apply robust physical barriers to defend the substrate. Choosing the right surface treatment is a delicate balance of corrosion resistance, aesthetic requirements, and dimensional tolerances.

• Hot-Dip Galvanizing (HDG): The ultimate heavy-duty defense for outdoor infrastructure. The casting is submerged in a bath of molten zinc at 450∞C. This is not merely a coating; a metallurgical reaction occurs, creating a series of incredibly tough zinc-iron alloy layers. It provides sacrificial cathodic protectionmeaning even if the coating is scratched, the zinc will corrode before the underlying steel. Engineering Warning: HDG adds significant, uneven thickness (typically 50 to 100 microns). It will ruin fine threads and tight bearing tolerances. It should only be used for structural, non-mating surfaces.
• Black Oxide Conversion Coating: A chemical process that converts the surface iron into magnetite (Fe3O4). It provides a sleek, matte black finish that absorbs oil to resist mild corrosion. Its greatest engineering advantage is dimensional stabilityit adds virtually zero measurable thickness (less than 1 micron). It is the ideal choice for high-precision machine parts, internal gears, and tooling where maintaining exact ISO 8062 tolerances is mandatory, though it offers limited protection in harsh outdoor environments.
• Powder Coating & E-Coating: For components requiring high aesthetic appeal and excellent barrier protection, powder coating applies a dry thermoset polymer that is baked onto the casting. E-coating (Electrophoretic deposition) uses electrical current to deposit paint into the deepest, most complex recesses of a casting, offering superior uniform coverage compared to standard spray painting. Both require careful masking of machined mating surfaces prior to application.

Designing a part for CNC machining is vastly different from designing for fluid metal dynamics. To harness the full economic power of investment casting, engineers must respect the physical boundaries of molten steel solidification.

The ultimate nightmare for any supply chain is assembling a heavily machined, seemingly perfect carbon steel casting into an expensive hydraulic system, only to have it fail catastrophically under pressure due to internal voids. Carbon steel is susceptible to shrinkage porositymicroscopic sponge-like cavities that form deep within the thickest sections of the part if the gating and riser systems fail to feed enough liquid metal during the final stages of solidification. Visual inspection is completely useless against these internal assassins. Total quality assurance demands aggressive Non-Destructive Testing (NDT).

The BESSER Zero-Blind-Spot Guarantee: At Besser Casting, we refuse to engage in blind-box manufacturing. We recognize that our components are deployed in mission-critical applications where failure is not an option. Our quality protocol begins before the metal even solidifies: we utilize a SPECTRO Spectrometer to execute 100% real-time chemical composition calibration on the furnace floor, ensuring your exact carbon and alloy ratios are locked in. To eradicate the threat of internal voids, our facility is equipped with industrial X-Ray Radiography for deep volumetric inspection, alongside Magnetic Particle Inspection (MPI) to detect microscopic surface fatigue cracks invisible to the naked eye.

Every batch shipped globally from our facility is accompanied by an immutable Material Test Report (MTR) and precise dimensional validation generated by our Hexagon Coordinate Measuring Machines (CMM). Backed by our rigorous IATF16949 automotive quality management system, we provide total traceability from the raw steel billet to the final CNC-machined surface.

The convergence of exceptional yield strength, high-impact toughness, and near-net-shape manufacturing economy makes carbon steel investment casting the definitive process for the world’s most demanding heavy industries. In the Railway and Transit sector, components like suspension bogie bolsters, specialized coupling knuckles, and track switch plates rely on medium-carbon alloys to withstand decades of relentless vibratory stress and massive dynamic loading without fracturing.

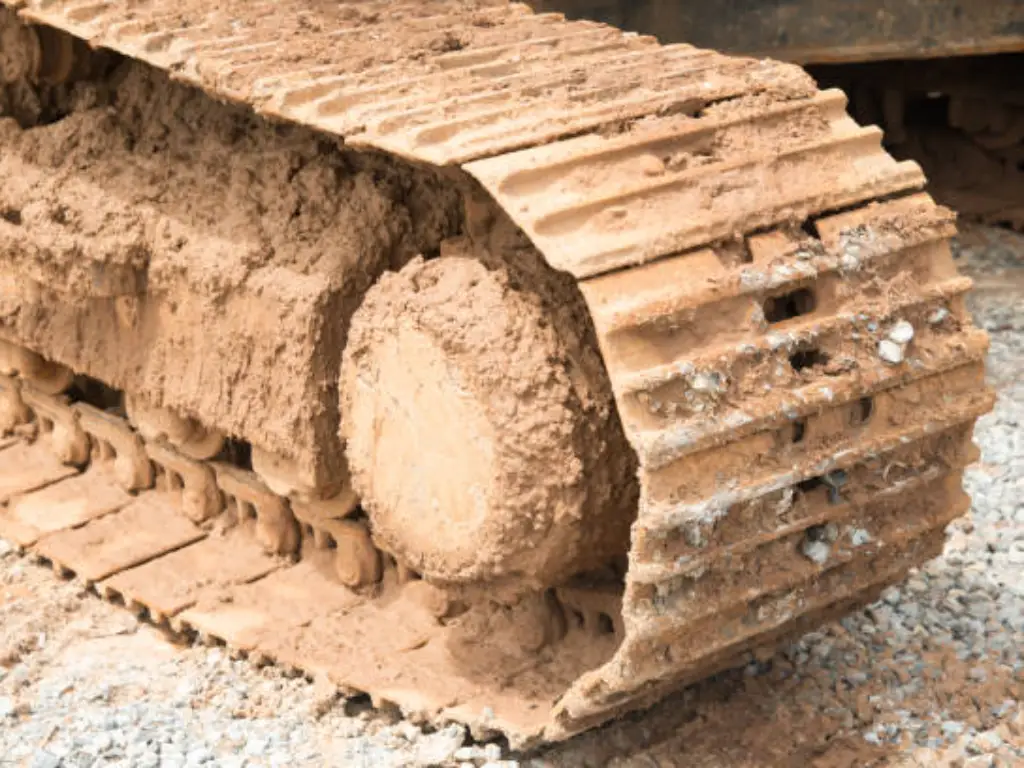

The Agricultural and Construction Equipment sectorsdominated by titans like John Deere and Caterpillarare arguably the largest consumers of this technology. Tractor three-point hitch linkages, heavy-duty rotary tiller tines, and bulldozer hydraulic cylinder clevises require the deep hardenability of 4140 steel to resist severe abrasive wear from soil and rock impact, all while remaining cost-effective at high production volumes. Finally, in the realm of Fluid Power and Hydraulics, the intricate internal coring capabilities of investment casting allow engineers to design complex hydraulic pump bodies, directional control valve housings, and multi-port manifold blocks in high-pressure WCB steel, replacing massive, leak-prone welded pipe assemblies with a single, monolithic, pressure-tested casting.
